Air Suspension Blower – Nuoshui Environmental
The air suspension blower is an efficient, energy-saving, and eco-friendly product based on aerospace technology and aerodynamic design.
Best services
Customer-centric, offering rapid response, tailored solutions, and end-to-end support.
Rich in experience
Industry veterans with solid expertise and strong risk anticipation.
Quality assured
Globally certified standards with rigorous end-to-end quality control.
Excellent team
A team of elites—collaborative, innovative, and committed to delivering client value.
YF AIR SUSPENSION TECHNOLOGY

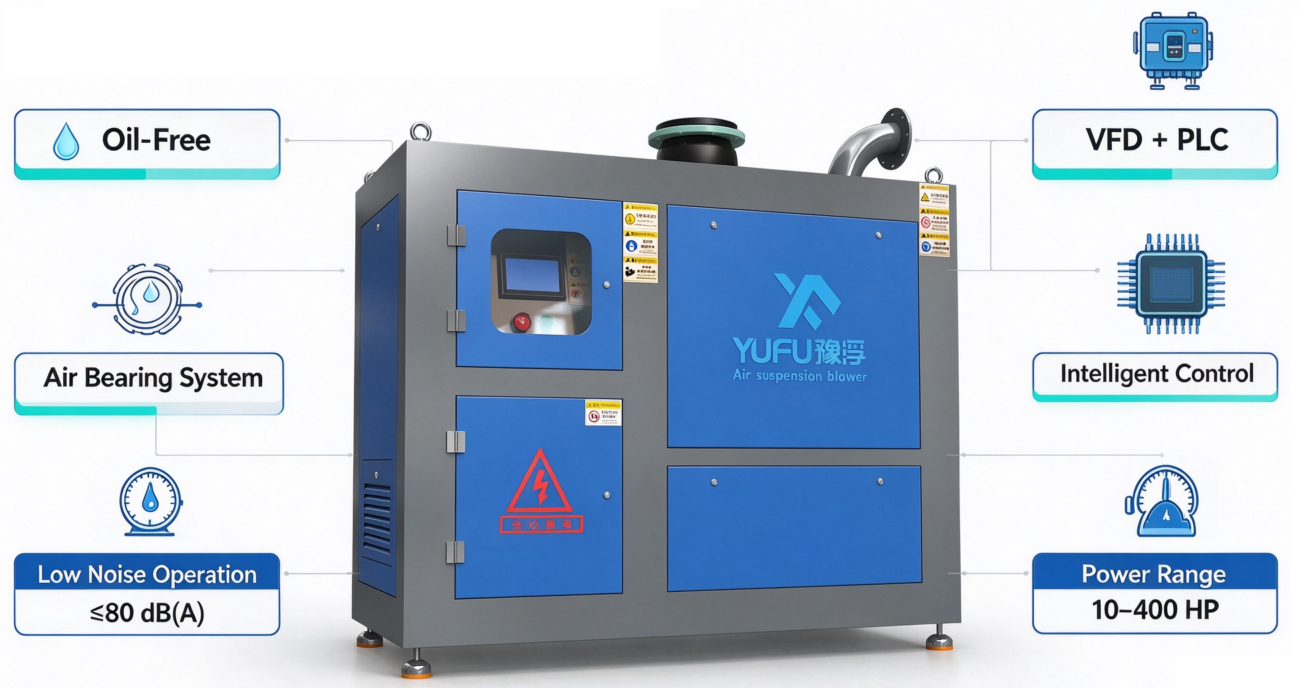

Air Suspension Blower Engineered for Efficiency.
YF air suspension blowers combine high-speed permanent-magnet motor technology, aerodynamic impellers, air bearings and intelligent variable-frequency control into a compact high-performance system. Designed for efficient, stable and oil-free industrial air delivery.

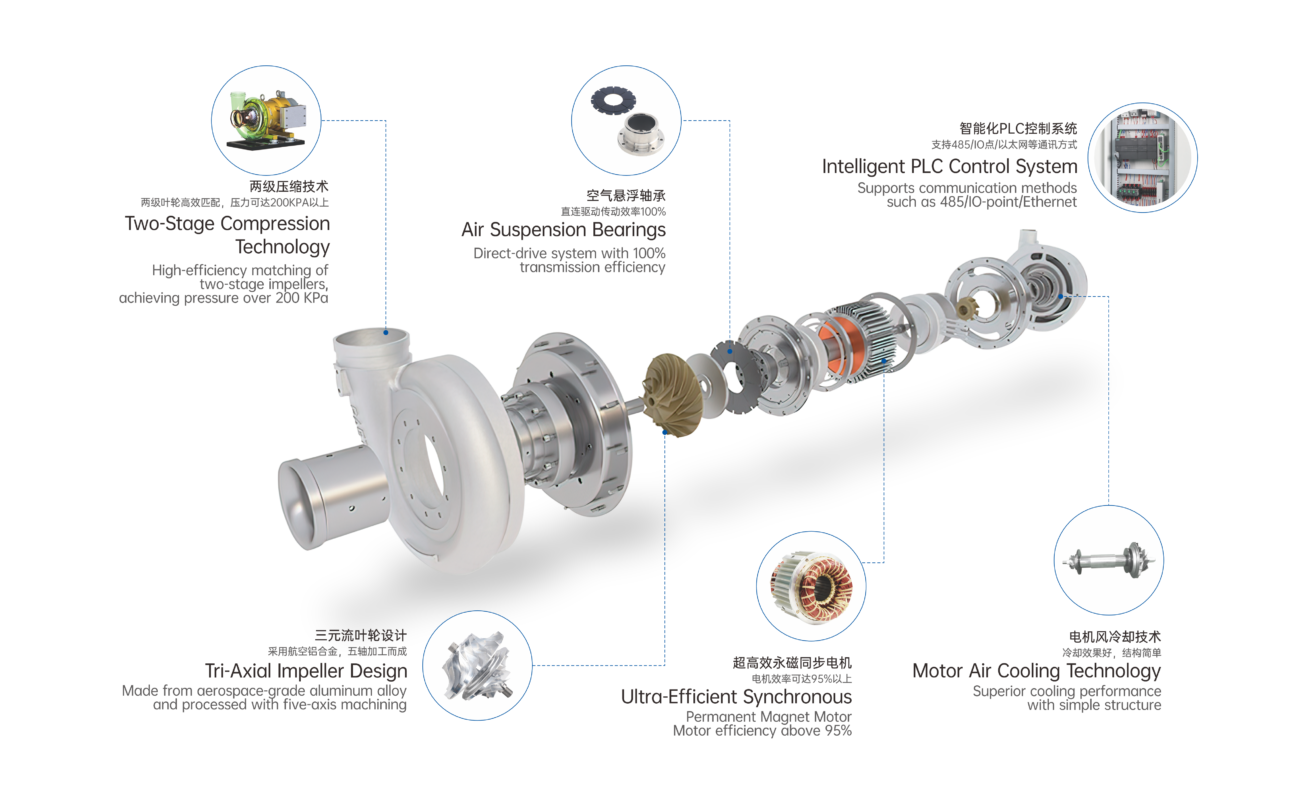

YF · AIR SUSPENSION SERIES CORE TECHNOLOGY
More than a blower. A complete high-speed air system.
The integrated architecture minimizes mechanical transmission losses while intelligent controls continuously manage system operation according to process requirements.
|
Air Suspension Bearings |
Aerodynamic Impeller | High-Speed PM Motor |
Smart Control |
 |
|
|
|
| Oil-free air bearing technology reduces friction, Optimized high-efficiency impeller design provides. | Optimized high-efficiency impeller design provides PLC and variable-frequency control monitor operating. | PLC and variable-frequency control monitor operating PLC and variable-frequency control monitor operating. | Mechanica losses and supports highspeed operation. parameters and adapt blower performance to demand. |

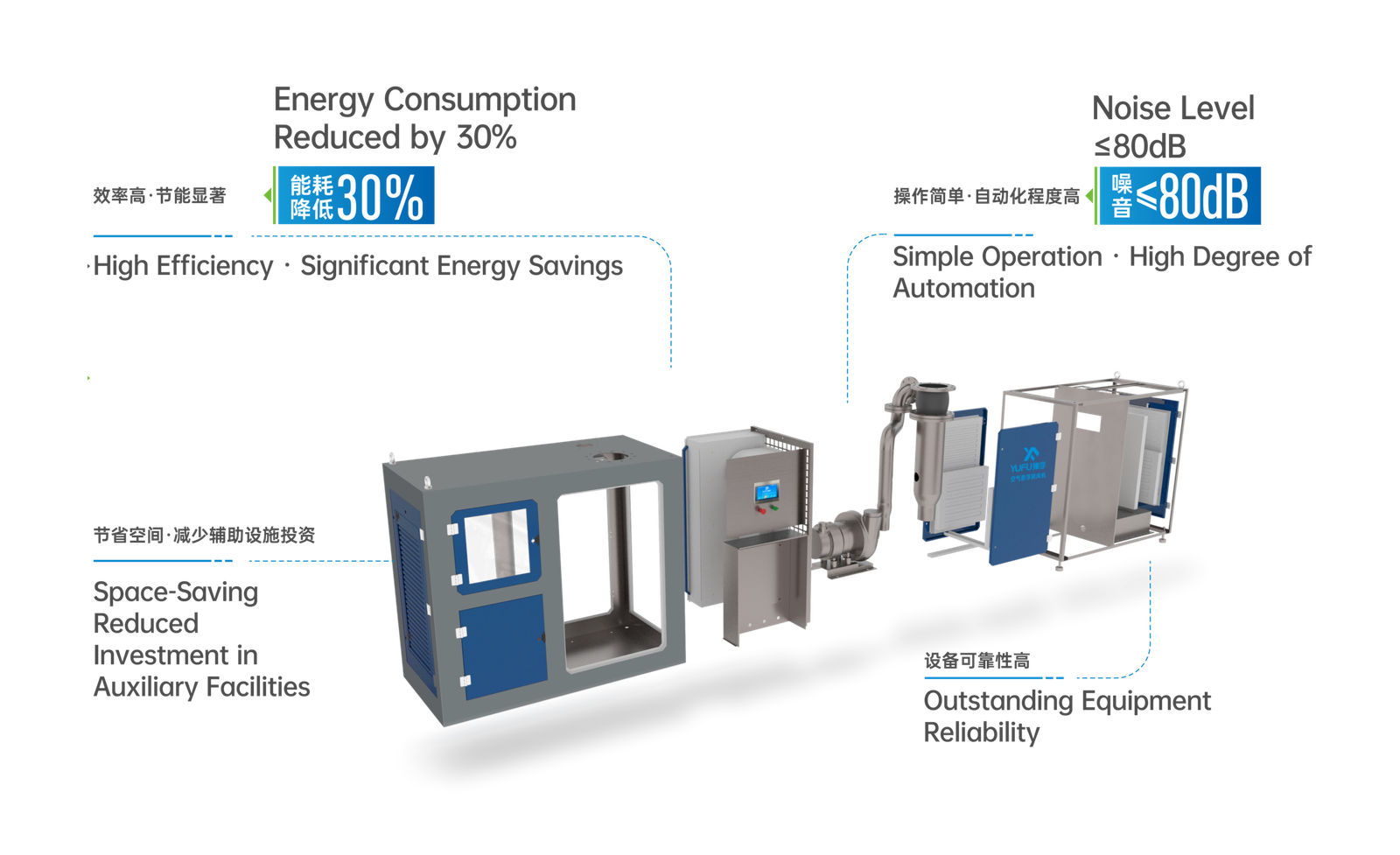

DESIGNED FROM THE INSIDE OUT.
From the high-speed motor and air-bearing system to the variable-frequency drive and control architecture, each component is engineered as part of one integrated system.
YF ENGINEERING

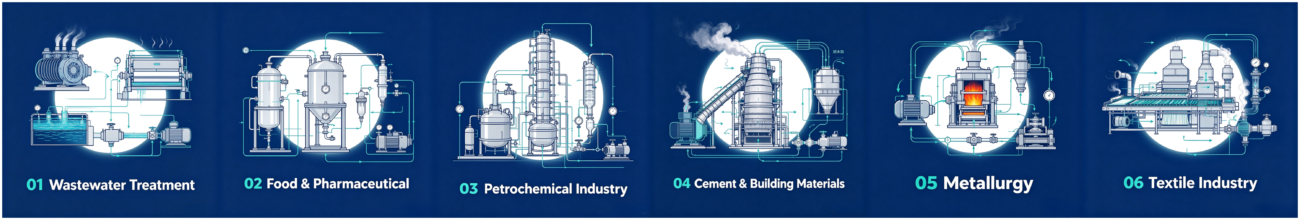

YF APPLICATIONS
Built for demanding industrial environments.
Multiple airflow and pressure configurations allow the system to be adapted to a wide range of industrial processes.
QUALITY ASSURANCE
Certified.Tested.Built to perform.
Product engineering and manufacturing are supported by standardized testing, inspection and certification processes designed to support long-term operating reliability. CE certification and compliance documentation Factory quality inspection proceduresPerformance testing before delivery Engineering and technical service support.
TECHNICAL DATA
Model selection.
Representative configurations are listed below. Final equipment selection should be based on airflow, pressure, site conditions and process requirements.
INNOVATION
Engineering backed by continuous innovation.
Our technology development and intellectual property portfolio support continuous improvements in efficiency, reliability and intelligent equipment performance.
Tell us your airflow and pressure requirements.
Our engineering team can help evaluate operating conditions and recommend an appropriate YF blower configuration.
Air Suspension Blower Model Table
展示全部机型参数，便于直接查看不同压力工况下的流量与接口尺寸。
| Model | Type | Power | Rated Power | Flow | Pressure | Outlet | Dimensions |
|---|---|---|---|---|---|---|---|
| YF10-04 | 单叶轮 | 10 HP | 7.5 kW | 8.4 m³/min | 40 kPa | DN150 | 700×1600×1600 |
| YF10-06 | 单叶轮 | 10 HP | 7.5 kW | 7 m³/min | 60 kPa | DN150 | 700×1600×1600 |
| YF10-08 | 单叶轮 | 10 HP | 7.5 kW | 5.5 m³/min | 80 kPa | DN150 | 700×1600×1600 |
| YF20-04 | 单叶轮 | 20 HP | 15 kW | 16 m³/min | 40 kPa | DN150 | 700×1600×1600 |
| YF20-06 | 单叶轮 | 20 HP | 15 kW | 13 m³/min | 60 kPa | DN150 | 700×1600×1600 |
| YF20-08 | 单叶轮 | 20 HP | 15 kW | 10.5 m³/min | 80 kPa | DN150 | 700×1600×1600 |
| YF30-04 | 单叶轮 | 30 HP | 22 kW | 24 m³/min | 40 kPa | DN150 | 700×1600×1600 |
| YF30-06 | 单叶轮 | 30 HP | 22 kW | 20 m³/min | 60 kPa | DN150 | 700×1600×1600 |
| YF30-08 | 单叶轮 | 30 HP | 22 kW | 17 m³/min | 80 kPa | DN150 | 700×1600×1600 |
| YF50-04 | 单叶轮 | 50 HP | 37 kW | 42 m³/min | 40 kPa | DN150 | 700×1600×1600 |
| YF50-06 | 单叶轮 | 50 HP | 37 kW | 34 m³/min | 60 kPa | DN150 | 700×1600×1600 |
| YF50-08 | 单叶轮 | 50 HP | 37 kW | 28 m³/min | 80 kPa | DN150 | 700×1600×1600 |
| YF50-10 | 单叶轮 | 50 HP | 37 kW | 23 m³/min | 100 kPa | DN150 | 700×1600×1600 |
| YF50-12 | 单叶轮 | 50 HP | 37 kW | 19 m³/min | 120 kPa | DN150 | 700×1600×1600 |
| YF75-04 | 单叶轮 | 75 HP | 55 kW | 60 m³/min | 40 kPa | DN200 | 800×1600×1800 |
| YF75-06 | 单叶轮 | 75 HP | 55 kW | 51 m³/min | 60 kPa | DN200 | 800×1600×1800 |
| YF75-08 | 单叶轮 | 75 HP | 55 kW | 42 m³/min | 80 kPa | DN200 | 800×1600×1800 |
| YF75-10 | 单叶轮 | 75 HP | 55 kW | 34 m³/min | 100 kPa | DN200 | 800×1600×1800 |
| YF75-12 | 单叶轮 | 75 HP | 55 kW | 28.5 m³/min | 120 kPa | DN200 | 800×1600×1800 |
| YF100-04 | 单叶轮 | 100 HP | 75 kW | 84 m³/min | 40 kPa | DN200 | 800×1600×1800 |
| YF100-06 | 单叶轮 | 100 HP | 75 kW | 69 m³/min | 60 kPa | DN200 | 800×1600×1800 |
| YF100-08 | 单叶轮 | 100 HP | 75 kW | 55 m³/min | 80 kPa | DN200 | 800×1600×1800 |
| YF100-10 | 单叶轮 | 100 HP | 75 kW | 45 m³/min | 100 kPa | DN200 | 800×1600×1800 |
| YF100-12 | 单叶轮 | 100 HP | 75 kW | 38 m³/min | 120 kPa | DN200 | 800×1600×1800 |
| YF125-04 | 单叶轮 | 125 HP | 95 kW | 102 m³/min | 40 kPa | DN250 | 1000×1700×1950 |
| YF125-06 | 单叶轮 | 125 HP | 95 kW | 82 m³/min | 60 kPa | DN250 | 1000×1700×1950 |
| YF125-08 | 单叶轮 | 125 HP | 95 kW | 70 m³/min | 80 kPa | DN250 | 1000×1700×1950 |
| YF125-10 | 单叶轮 | 125 HP | 95 kW | 56 m³/min | 100 kPa | DN250 | 1000×1700×1950 |
| YF125-12 | 单叶轮 | 125 HP | 95 kW | 48 m³/min | 120 kPa | DN250 | 1000×1700×1950 |
| YF150-04 | 单叶轮 | 150 HP | 110 kW | 120 m³/min | 40 kPa | DN250 | 1000×1700×1950 |
| YF150-06 | 单叶轮 | 150 HP | 110 kW | 105 m³/min | 60 kPa | DN250 | 1000×1700×1950 |
| YF150-08 | 单叶轮 | 150 HP | 110 kW | 84 m³/min | 80 kPa | DN250 | 1000×1700×1950 |
| YF150-10 | 单叶轮 | 150 HP | 110 kW | 65 m³/min | 100 kPa | DN250 | 1000×1700×1950 |
| YF150-12 | 单叶轮 | 150 HP | 110 kW | 58 m³/min | 120 kPa | DN250 | 1000×1700×1950 |
| YF200-04 | 双叶轮 / 单叶轮 | 200 HP | 150 kW | 单160 / 双200 m³/min | 40 kPa | DN300 | 1100×1800×1950 |
| YF200-06 | 双叶轮 / 单叶轮 | 200 HP | 150 kW | 140 m³/min | 60 kPa | DN300 | 1100×1800×1950 |
| YF200-08 | 双叶轮 / 单叶轮 | 200 HP | 150 kW | 109 m³/min | 80 kPa | DN300 | 1100×1800×1950 |
| YF200-10 | 双叶轮 / 单叶轮 | 200 HP | 150 kW | 87 m³/min | 100 kPa | DN300 | 1100×1800×1950 |
| YF200-12 | 双叶轮 / 单叶轮 | 200 HP | 150 kW | 76 m³/min | 120 kPa | DN300 | 1100×1800×1950 |
| YF250-04 | 双叶轮 / 单叶轮 | 250 HP | 185 kW | 双220 m³/min | 40 kPa | DN300 | 1100×1800×1950 |
| YF250-06 | 双叶轮 / 单叶轮 | 250 HP | 185 kW | 160 m³/min | 60 kPa | DN300 | 1100×1800×1950 |
| YF250-08 | 双叶轮 / 单叶轮 | 250 HP | 185 kW | 138 m³/min | 80 kPa | DN300 | 1100×1800×1950 |
| YF250-10 | 双叶轮 / 单叶轮 | 250 HP | 185 kW | 104 m³/min | 100 kPa | DN300 | 1100×1800×1950 |
| YF250-12 | 双叶轮 / 单叶轮 | 250 HP | 185 kW | 95 m³/min | 120 kPa | DN300 | 1100×1800×1950 |
| YF300-04 | 双叶轮 | 300 HP | 220 kW | 250 m³/min | 40 kPa | DN500 | 1205×2550×2410 |
| YF300-06 | 双叶轮 | 300 HP | 220 kW | 210 m³/min | 60 kPa | DN400 | 1205×2550×2410 |
| YF300-08 | 双叶轮 | 300 HP | 220 kW | 164 m³/min | 80 kPa | DN400 | 1205×2550×2410 |
| YF300-10 | 双叶轮 | 300 HP | 220 kW | 133 m³/min | 100 kPa | DN400 | 1205×2550×2410 |
| YF300-12 | 双叶轮 | 300 HP | 220 kW | 114 m³/min | 120 kPa | DN400 | 1205×2550×2410 |
| YF400-04 | 双叶轮 | 400 HP | 300 kW | 336 m³/min | 40 kPa | DN500 | 1205×2555×2530 |
| YF400-06 | 双叶轮 | 400 HP | 300 kW | 272 m³/min | 60 kPa | DN500 | 1205×2555×2530 |
| YF400-08 | 双叶轮 | 400 HP | 300 kW | 218 m³/min | 80 kPa | DN500 | 1205×2555×2530 |
| YF400-10 | 双叶轮 | 400 HP | 300 kW | 176 m³/min | 100 kPa | DN400 | 1205×2555×2410 |
| YF400-12 | 双叶轮 | 400 HP | 300 kW | 152 m³/min | 120 kPa | DN400 | 1205×2555×2410 |
