YF MAGNETIC LEVITATION TECHNOLOGY
Magnetic Levitation Vacuum Pump.
Designed for efficient industrial vacuum generation, the YF magnetic levitation vacuum pump combines direct-drive magnetic levitation technology with intelligent control to reduce mechanical loss, routine maintenance and operating energy consumption.

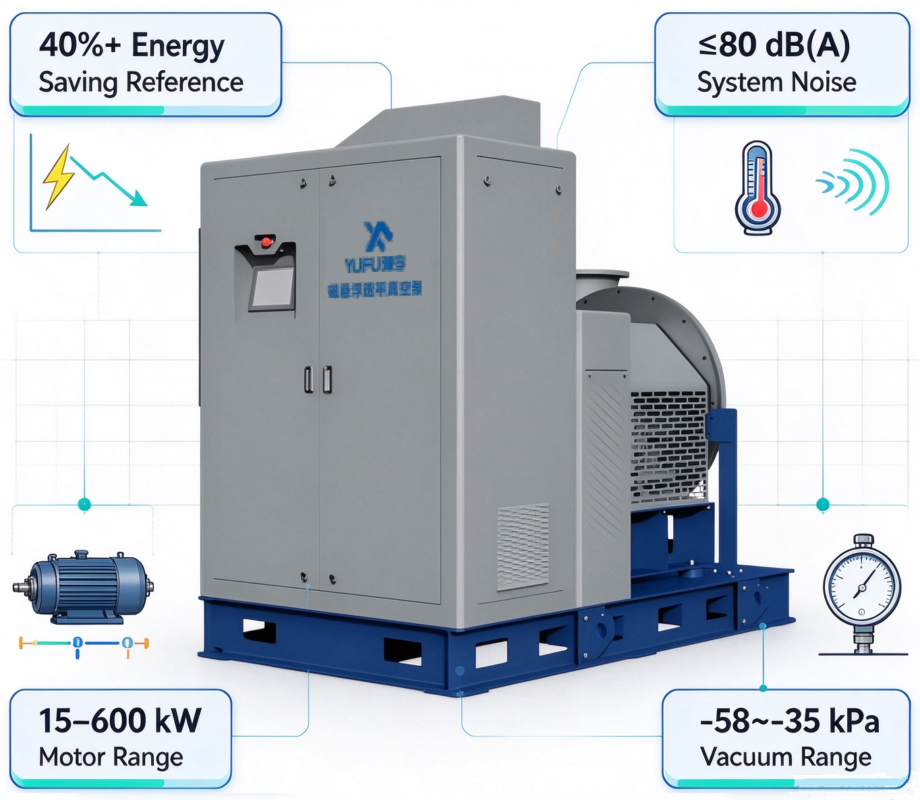

YF· MAGLEV VACUUM SERIES PERFORMANCE ADVANTAGE
High vacuum efficiency with fewer mechanical losses.
Energy-saving reference compared with traditional water-ring vacuum pump systems under applicable operating conditions.
|
Direct Drive |
Magnetic Levitation | Low Maintenance |
Quiet Operation |
|
|
 |
|
|
| The rotor is directly coupled with the impeller, reducing transmission losses associated with traditional mechanical drive structures. | Non-contact magnetic levitation technology reduces mechanical wear and supports reliable high-speed operation. | Oil-free operation and fewer wear components help reduce routine maintenance requirements and service complexity. | Integrated system-level noise control keeps reference operating noise below approximately 80 dB(A). |
SYSTEM COMPOSITION
One complete vacuum system.
The vacuum pump works as part of an integrated system incorporating moisture separation, surge protection, flexible connection, filtration and intelligent control.
TEM STRUCTURE SYSTEM STRUCTURE
HOW IT WORKS
Engineered as a complete process.
Air and process gas pass through separation and vacuum-generation stages while intelligent control manages system operating conditions.
|
Gas Intake |
Moisture Separation | Vacuum Generation |
Smart Control |
|
|
|
|
|
| Process gas enters through the separator inlet and is prepared for the vacuum-generation stage. | The moisture separator helps remove entrained liquid before the gas reaches critical vacuum components. | The magnetic levitation vacuum pump provides efficient high-speed vacuum generation according to process demand. | The control cabinet and anti-surge system help maintain stable equipment operation across the operating range. |

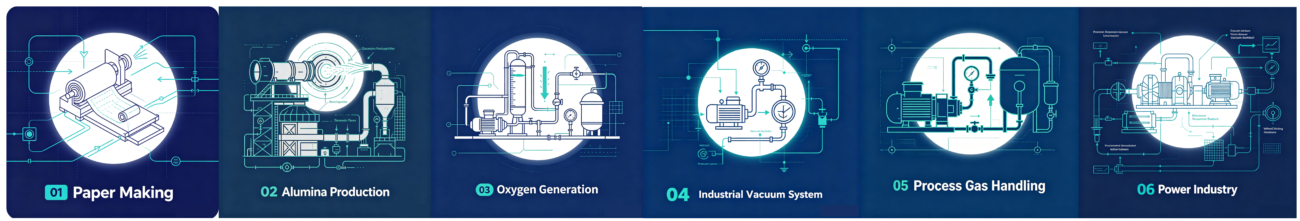

INDUSTRIES & APPLICATIONS
Industrial vacuum where efficiency matters.
The magnetic levitation vacuum pump is designed for continuous industrial processes requiring stable vacuum and energy-efficient operation.
Application Engineering
Final model selection should be based on required vacuum, flow rate, process medium, operating environment and site conditions.
VACUUM OPERATING RANGE
Flexible operating pressure selection.
YF magnetic levitation vacuum pumps are available across multiple vacuum pressure points to match process flow requirements and operating conditions.
SELECTION PARAMETERS
Model selection by vacuum demand.
Representative flow-rate data across six vacuum-pressure conditions. Final equipment configuration should be confirmed according to the required operating point.
| Motor Power | -58 kPa | -55 kPa | -50 kPa | -45 kPa | -40 kPa | -35 kPa | Motor Power | -58 kPa | -55 kPa | -50 kPa | -45 kPa | -40 kPa | -35 kPa | |
| 15 kW | 17 | 18 | 19 | 20 | 21 | 24 | 160 kW | 185 | 189 | 199 | 212 | 229 | 252 | |
| 18.5 kW | 21 | 22 | 23 | 24 | 26 | 29 | 185 kW | 214 | 219 | 230 | 245 | 265 | 291 | |
| 22 kW | 25 | 26 | 27 | 29 | 31 | 35 | 220 kW | 254 | 260 | 273 | 291 | 315 | 346 | |
| 30 kW | 35 | 35 | 37 | 40 | 43 | 47 | 250 kW | 289 | 295 | 310 | 331 | 358 | 394 | |
| 37 kW | 43 | 44 | 46 | 49 | 53 | 58 | 280 kW | 323 | 331 | 348 | 370 | 400 | 441 | |
| 45 kW | 52 | 53 | 56 | 60 | 64 | 71 | 300 kW | 346 | 354 | 372 | 397 | 429 | 472 | |
| 55 kW | 63 | 65 | 68 | 72 | 79 | 87 | 315 kW | 364 | 372 | 391 | 417 | 451 | 496 | |
| 75 kW | 87 | 89 | 93 | 99 | 107 | 118 | 350 kW | 404 | 414 | 434 | 463 | 501 | 551 | |
| 90 kW | 104 | 106 | 112 | 119 | 129 | 142 | 400 kW | 462 | 473 | 497 | 529 | 572 | 630 | |
| 110 kW | 127 | 130 | 137 | 145 | 157 | 173 | 450 kW | 520 | 532 | 559 | 595 | 644 | 708 | |
| 132 kW | 152 | 156 | 146 | 175 | 189 | 208 | 500 kW | 577 | 591 | 621 | 661 | 715 | 787 | |
| 145 kW | 167 | 171 | 180 | 191 | 207 | 228 | 550 kW | 635 | 650 | 683 | 727 | 787 | 866 |
Selection note:
Values above represent flow-rate references taken from the product selection information. Rotational speed varies according to motor power and vacuum pressure. Contact the YF engineering team for final model selection and complete performance data.

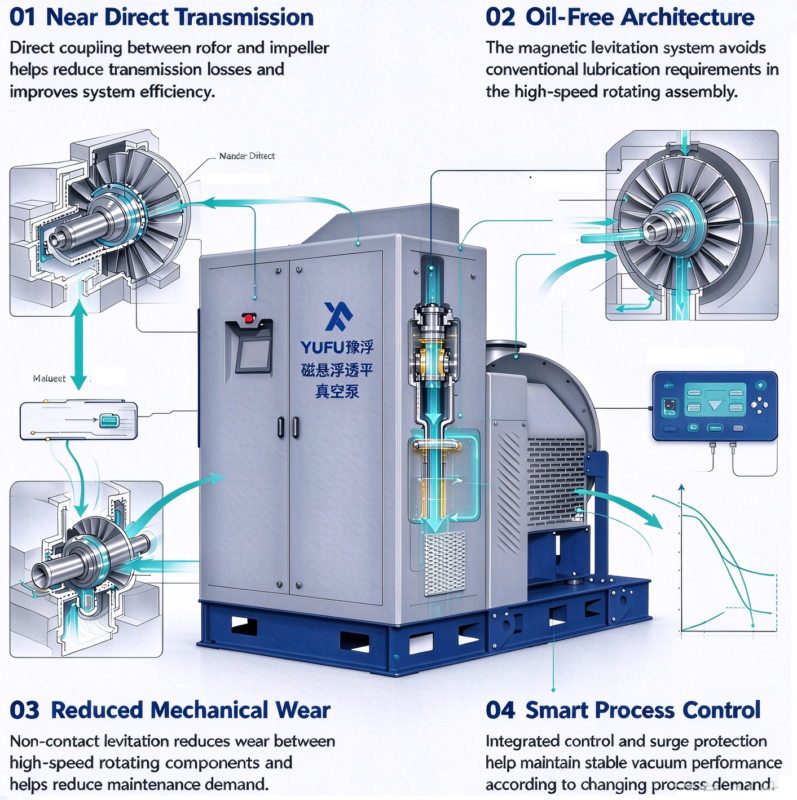

WHY MAGNETIC LEVITATION
Less friction. Less maintenance. More efficiency.
Magnetic levitation technology changes the way industrial vacuum equipment handles mechanical transmission and wear.
Need help selecting the right vacuum pump
Send us your target vacuum pressure, required flow rate, process medium and operating conditions. Our engineering team can help recommend an appropriate YF configuration.
