Magnetic Levitation Air Compressor – Nuoshui Environmental
Compared to traditional screw compressor technology, magnetic levitation centrifugal air compressors offer significant advantages
Best services
Customer-centric, offering rapid response, tailored solutions, and end-to-end support.
Rich in experience
Industry veterans with solid expertise and strong risk anticipation.
Quality assured
Globally certified standards with rigorous end-to-end quality control.
Excellent team
A team of elites—collaborative, innovative, and committed to delivering client value.
Clean compressed air.
Without compromise.

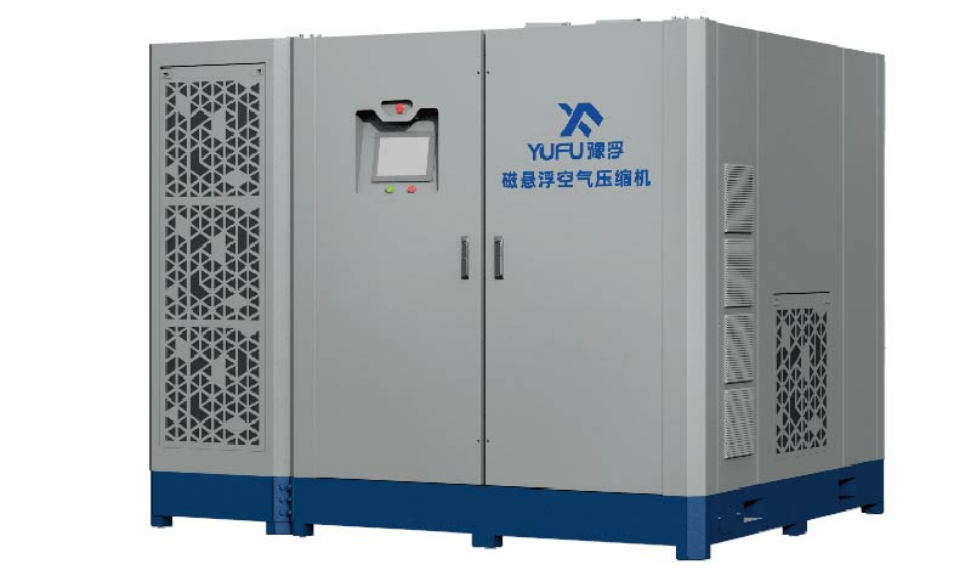

The YUFU magnetic levitation air compressor combines
high-speed magnetic levitation motor technology with a
direct-drive centrifugal compression system to deliver
clean, efficient and reliable compressed air for demanding
industrial applications.

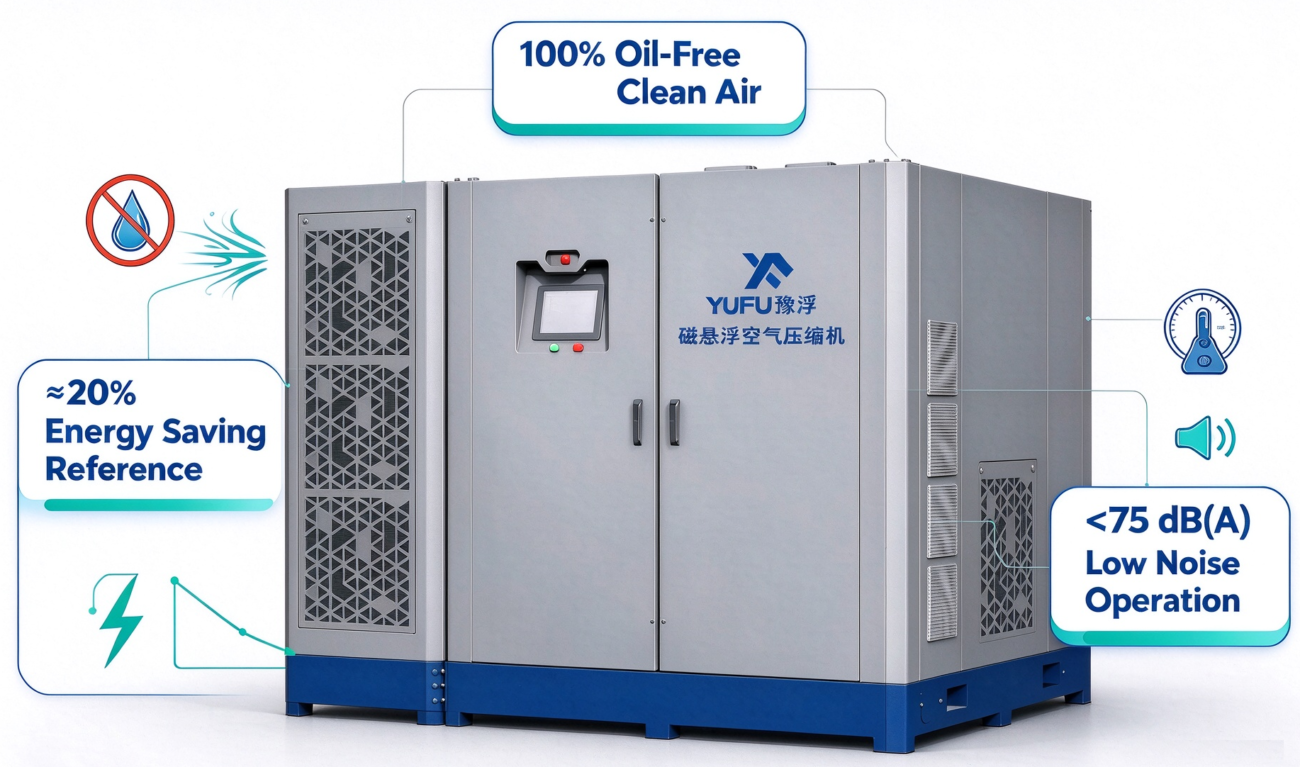

Oil-Free Clean Air
Energy Saving Reference
Low Noise Operation
ISO 8573-1:2010
100% oil-free.
Clean air by design.
The high-speed magnetic levitation motor directly drives
the centrifugal compression system, removing conventional
lubricated transmission components from the compression process.
01
Class 0 Air Quality
Designed for demanding processes where compressed-air
purity and contamination control are critical.
02
No Lubricating Oil
The compression architecture eliminates oil contamination
risks associated with conventional lubricated compressor systems.
03
Low Environmental Impact
Oil-free technology simplifies operation while helping
reduce consumables and service requirements.
04
Low Noise
Reference operating noise is below approximately
75 dB(A), supporting a more comfortable working environment.
High-speed technology
at the heart of the system.
The centrifugal impeller and magnetic levitation bearing
architecture work together to support efficient,
high-speed and low-friction compressor operation.
01 · AERODYNAMIC ENGINEERING

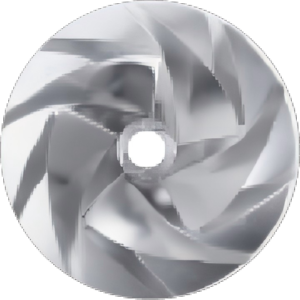

High-Efficiency Impeller
Precision aerodynamic impeller design converts high-speed
motor power into efficient centrifugal compression while
supporting stable airflow across the operating range.

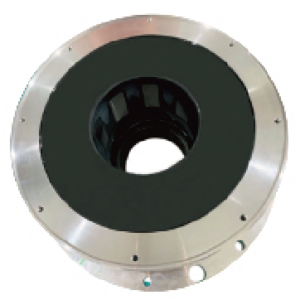

02 · MAGNETIC LEVITATION
Non-Contact Bearing System
Magnetic levitation technology supports the high-speed rotor
without conventional mechanical contact, reducing wear,
friction and routine maintenance requirements.
Efficiency designed
into every rotation.
Approximate energy-saving reference compared with
conventional compressor technology under applicable
operating conditions.
Clean compressed air
for critical industries.
Ideal for industrial processes where oil-free air quality,
energy efficiency, reliability and low noise are important.
01
02
03
04
05
06
07
08
Multiple pressure levels.
One technology platform.
YUFU magnetic levitation air compressors are available
across multiple pressure configurations to support different
industrial compressed-air demands.
Pressure
Pressure
Pressure
Pressure
Pressure
Pressure
Pressure
Representative
model selection.
The following models provide representative reference points
across the YUFU pressure and airflow range. Final selection
should be based on required pressure, airflow and site conditions.
| Model | Inlet Air Flow | Pressure | Motor Power |
|---|---|---|---|
| YF200-70 | 70 m³/min | 2 bar | 176 kW |
| YF200-120 | 120 m³/min | 2 bar | 302 kW |
| YF250-95 | 95 m³/min | 2.5 bar | 274 kW |
| YF250-140 | 140 m³/min | 2.5 bar | 405 kW |
| YF300-40 | 40 m³/min | 3 bar | 130 kW |
| YF300-100 | 100 m³/min | 3 bar | 325 kW |
| YF350-40 | 40 m³/min | 3.5 bar | 142 kW |
| YF350-120 | 120 m³/min | 3.5 bar | 426 kW |
| YF500-50 | 50 m³/min | 5 bar | 207 kW |
| YF500-120 | 120 m³/min | 5 bar | 497 kW |
| YF600-50 | 50 m³/min | 6 bar | 228 kW |
| YF600-120 | 120 m³/min | 6 bar | 545 kW |
| YF700-50 | 50 m³/min | 7 bar | 245 kW |
| YF700-120 | 120 m³/min | 7 bar | 587 kW |
| YF800-50 | 50 m³/min | 8 bar | 261 kW |
| YF800-120 | 120 m³/min | 8 bar | 623 kW |
Selection note:
The table above shows representative models only.
The original YUFU product range includes additional airflow
configurations at each operating pressure. Contact our engineering
team with your required pressure and air volume for final selection.

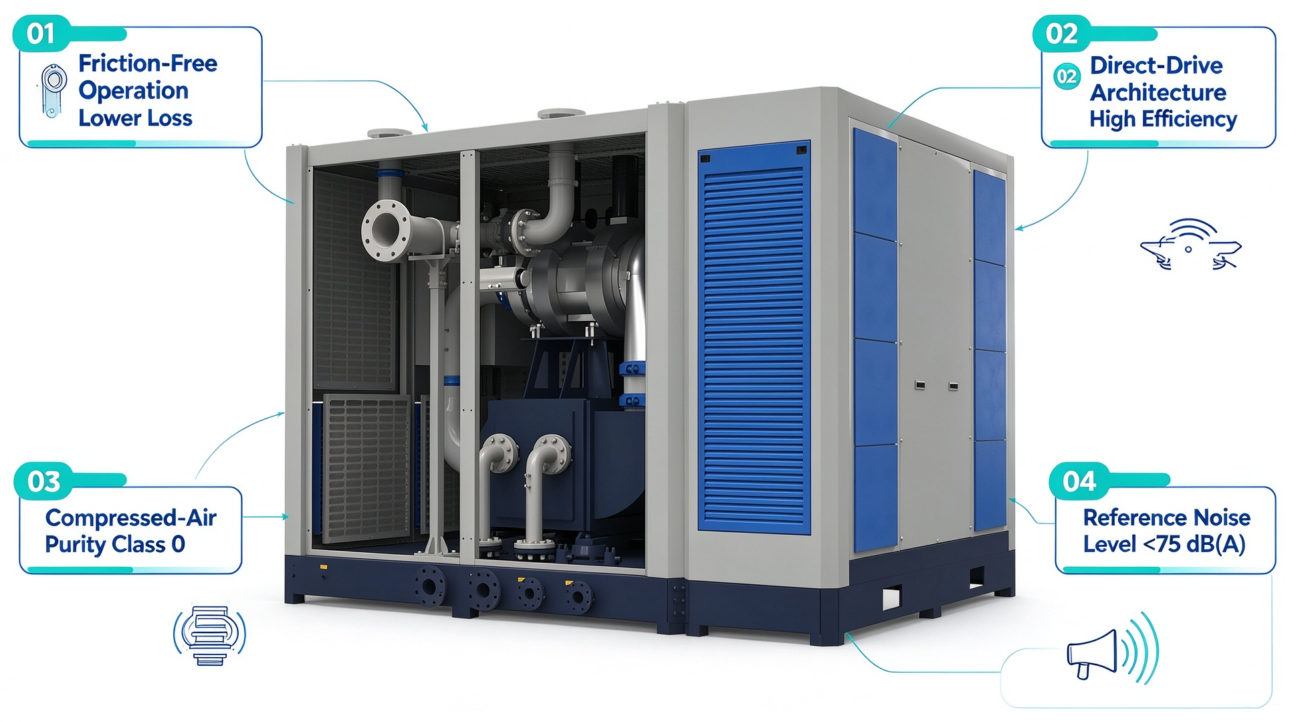

Cleaner air.
Lower friction.
Higher efficiency.
Magnetic levitation centrifugal compressor technology
replaces conventional contact-based transmission components
with a high-speed direct-drive architecture.

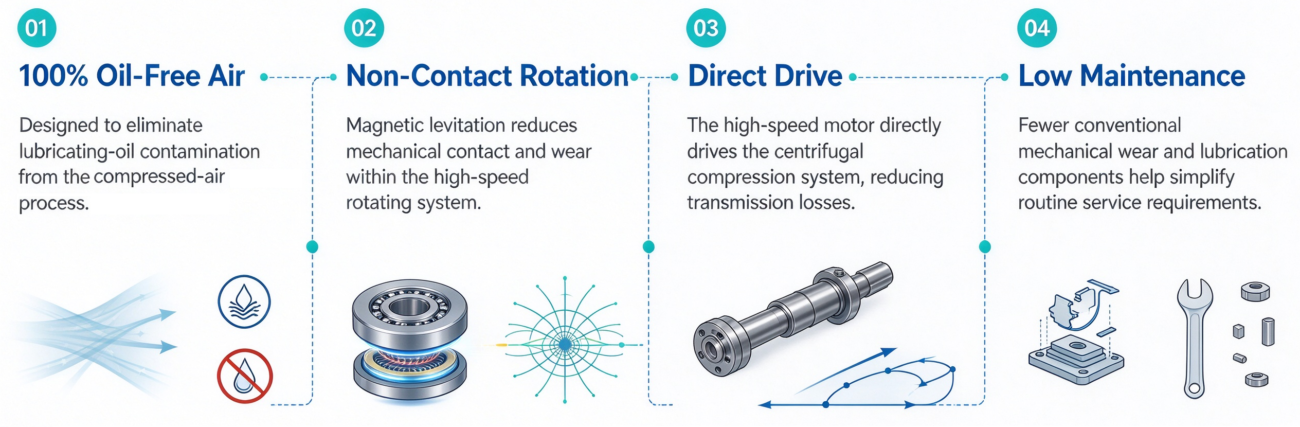

100% Oil-Free Air
Designed to eliminate lubricating-oil contamination from
the compressed-air process.
Non-Contact Rotation
Magnetic levitation reduces mechanical contact and
wear within the high-speed rotating system.
Direct Drive
The high-speed motor directly drives the centrifugal
compression system, reducing transmission losses.
Low Maintenance
Fewer conventional mechanical wear and lubrication
components help simplify routine service requirements.
Looking for clean, oil-free compressed air?
Tell us your required pressure, airflow, application
and operating conditions. Our engineering team can
recommend a suitable YUFU magnetic levitation air compressor.
